Loom Gauge Comparison Charts | A Handy Guide for Loom Knitters

Loom Gauge Comparison Charts | A Handy Guide for Loom Knitters

Inside: Your ultimate guide to knitting looms! Loom gauge comparison charts help you find just the right loom for your project.

Loom Gauge

The spacing between the pegs, called loom gauge, determines how big or small the stitches will knit up on that loom. Just like knitting needles come in many sizes so do looms. Instead of switching to a different size needle to adjust the size of our stitches we can use a different gauge loom.

Just know that this spacing or loom gauge, along with the yarn you choose and the stitch you knit all work together to make the final size of the stitches you make which is the final gauge of the knitted fabric. This is the difference in a sweater that is too small or sock that is too big.

Loom gauge is the distance the yarn travels from one peg to another which makes up 1 stitch. The measurement from the center of one peg to the next is called C2C Peg Spacing (Center to Center). Note that the diameter of a peg can change the gauge. The distance from center to center determines the classification of a loom into a category.

The loom gauge categories actually are determined by manufacturer(s) test knitting several swatches (samples) in appropriate yarn to see which category that loom should fall under.

The categories actually line up with a range of needle sizes. Keep this page handy as well when converting needle patterns.

*Keep in mind not all companies note the gauge but whatever size they make will fall into these categories.  One day we hope all will categorize in a standard format.

For more information on finding just the right loom for your project, check out my Knitting Loom Guide book. It lists all the popular loom brands by size, gauge and peg count. I update the book every year to add new looms that were introduced during the year.

Loom Gauge Categories:

EFG = Extra Fine Gauge (3/16″) = Equiv. Needle 1-3 (2.25 mm – 3.5 mm)
FG = Fine Gauge (1/4″) = Equiv. Needle 3-6 (3.5 mm – 4 mm)
SG = Small Gauge (5/16″, 3/8″, 7/16″) = Equiv. Needle 6-8 (3.75 mm – 5 mm)
RG = Regular Gauge (1/2″, 9/16″) = Equiv. Needle 8-10 (5 mm – 6 mm)
LG = Large Gauge (5/8″, 11/16″) = Equiv. Needle 10-13 (6mm – 9 mm)
XLG = Extra Large Gauge (3/4″, 13/16″, 7/8″, 15/16″) = Equiv. Needle 13-15 (9 mm – 10 mm)
JUMBO = EXL+ to JUMBO (+/- 1  1/2″) = Equiv. Needle 19-50 (12.75 mm – 25 mm)

Most manufacturers determine their gauge/set of their knitting loom product and will list it with the Loom Gauge abbreviation and/or the C2C fraction. If it is not listed you can usually measure this for yourself or check our chart. There are a few exceptions though. Different looms will have pegs of various diameters or even peg and pin systems (Kiss Looms) that make it hard to measure and also can change the gauge from one peg to the next.

Other contributing parts to determine the gauge of knitting are:  Yarn weight, stitch, tension, your mood and even the type of peg material.  Your knitting gauge can be different than a fellow knitter due to these even on the same loom!

Whether on a loom that is straight, round, oval, has one rake or two (also called the upper and lower of a long loom or a knitting board), your loom gauge will be measured from C2C.  However if you have a double rake (double sided) loom like a long loom or knitting board, you can also measure a second gauge for double knitting.

Adjustable Looms

Some looms can adjust this spacing! Kiss Looms are unique in that the peg spacing can adjust the gauge of the loom (distance from one peg to the next) just by adding the thickness of a washer. Thank you Kelly Jones, owner of Kiss Looms for allowing us to post your handy chart!

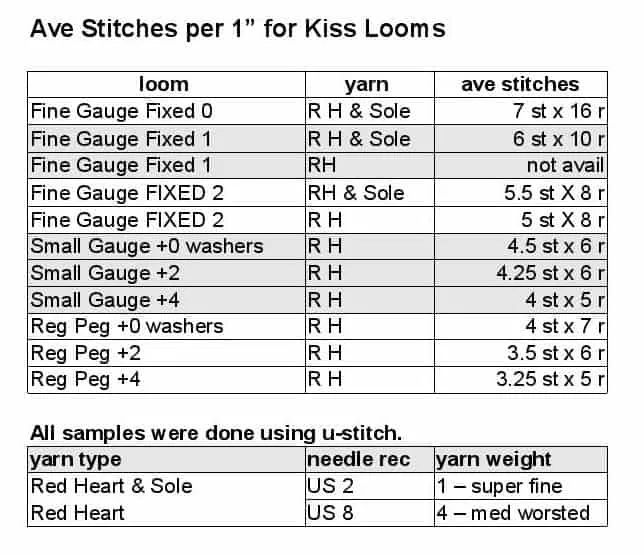

Kiss Looms loom gauge approved by Kelly Jones to use 09062014

NOTE on Patterns for Loom Gauge

When loom gauge is called out it usually will not be mentioned as C2C.  This term is used to explain HOW to measure. In loom patterns it may be written as a fraction, abbreviation or a specific loom may be called out.

Measurements for Loom Gauge

Be sure to take notes on that measurement and how you got it there and use a hard ruler or a digital caliper for accuracy.

Swatch and measuring knitting stitches/rows

Having a swatch made using different weight yarns (in the same stitch) on various looms and different adjustments can come in handy in your own homemade notebook or database.

loom Gauge Comparison charts PIN Image

Loom Gauge Comparison Charts

The following Charts are popular looms and their C2C Peg Spacing measurements.

Brands included in the charts below:


CinDWood Crafts

D.A.Looms / Décor Accents (no longer in production; nick name DA).

Flexilooms (In the Attic – no longer in production).

Knifty Knitter (ProvoCraft – no longer in production; loom clips can adjust long loom peg count in the round; nick name KK).

Knifty Knitter (Mommy & Me – no longer in production).

Knitting Board (also called KB or Authentic Knitting Board; double knit, single, circular, weave and some adjustable looms; nicknames KB or AKB).

Knitting Frame Noble Knitter

Loops & Threads (Michael’s Looms; similar to Hobby Lobby Looms; see Boye or Knifty Knitter similar patterns).

Lion Brand Martha Stewart Loom Knit & Weave Kit (adjustable size and pegs to knit or weave; nickname MS).

Reader’s Digest (no longer in production).

(Update April 7, 2015 Yarnology rectangular long loom set is identical to the 4 Knifty Knitter gauges and peg count in chart.  Yarnology not listed in chart.)

Please do not copy the charts from our website unless for digital storing for personal use. Our Charts are too large for regular paper to print but are perfect for those needing large clear print. Please link to this page on your own website or blog to help others find more resources!  Thanks! – The GoodKnit Kisses Team

(Charts updated July, 2016)

[NOTE: As of September, 2019, this list was appended, reformatted and turned into the Knitting Loom Guide. This is a project that will continue to be updated yearly as new looms are released and retired from production.]

Loom Gauge LARGE chart GKK Loom Knitting Guide 2016 pg 1

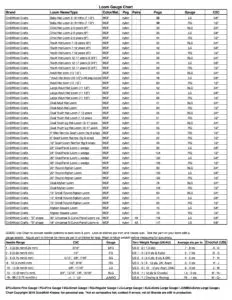

Loom Gauge LARGE chart GKK Loom Knitting Guide 2016 pg 2

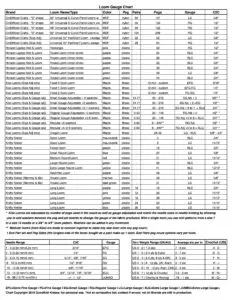

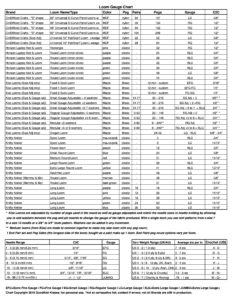

Loom Gauge LARGE chart GKK Loom Knitting Guide 2016 pg 3

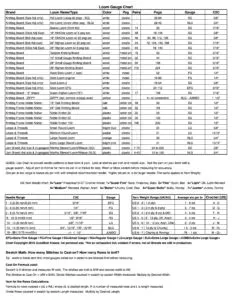

Loom Gauge LARGE chart GKK Loom Knitting Guide 2016 pg 4

Needle Patterns – If you are converting a needle-knitting pattern to the loom, use our short chart as a guide! Notice the columns with the Needle Equivalent listed and stitches per inch. Also included are recommended yarn weights for the needles and looms “C2C” or “Gauge” listed.  These appear in a range of needles & weights as your loom can handle different stitches per inch with a change in yarn, stitch pattern, and tension (how tight or loose you tend to knit). Please note that the US and UK/AU systems are noted. For stitches per inch in metric, multiply the number by 4. That will give you 4”, which is 10 cm. Your new number will be roughly the number of stitches in a 10 cm swatch. (2.54cm = 1 inch). Keep in mind that stitches per inch listed are taken from averages and are not set in stone. The rows per inch are not listed on this chart.

Loom Comparison Examples

•Loom A & B are listed as SG and 3/8”. They can both be measured from the center of the peg groove to the center of the next peg groove. However, Loom B’s peg is just a little bit larger in diameter than Loom A.  Here the stitches per inch could be slightly less on Loom B compared to a swatch from Loom A with the same yarn and type of stitch pattern.

•Loom C is a Kiss loom with a peg in front and a pin behind on a thinner pin board; this loom is listed as an SG but it is difficult to measure. Here the yarn travels in front of the peg and then behind the pin that is behind and offset from the peg. The distance between the peg and pin can get larger if washers are added between the front larger board and the thin pin board to change the overall gauge. Knitting a swatch (see Why Swatch) is the best way to confirm overall knit gauge.Again, other contributing parts to determine the gauge of knitting are:  Yarn weight, stitch, tension and your mood.  Your knitting gauge can be different than a fellow knitter due to these even on the same loom!

Adjustable Looms

This is an exciting feature but should come with an explanation as to what the word “adjustable” means. Adjustable can be a deceiving word. Most looms have a fixed number of pegs and a rigid frame. However, there are a few looms that can adjust the actual size of he stitches on the same loom.

Here are examples of how the word adjustable should be used:

  1. If a frame can be adjusted to change the number of pegs then we would say it is Adjustable Size Only.
  2. If you can choose between two or more gauges and it is also peg count adjustable we would say it is Size Adjustable & 2+ gauges.
  3. If the distance between the pegs can be changed slowly with washers then we would say the loom is Size and Gauge Adjustable. Size adjustable looms allow the knitter to slide or move part of the frame to get the desired peg count.

Loom Gauge Comparison Charts Helpful Videos:

If you found the loom gauge comparison charts helpful and want to find out more about loom knitting see my blog with 13 Questions for Beginner Loom Knitters to Get the Best Start!


Monday 17th of January 2022

I was asked to make/donate twiddlemuffs for patients with alzheimers, dementia, anxiety for a long term care home, so looking at getting my first loom.

The information you've provided is helpful and I think a 3/8 gauge is what I need (I have lots of DK/skinny #4 yarn) but I am still unsure on the actual size of the loom I need (number of pegs). The circumference of the knitted tube needs to be approx 12" in a relaxed but closed knit fabric. I know tension and yarn weight can play a part in size, so I am looking for help on a general size that I should look at.

All the reviews online I've seen indicate the crank looms seem to skip a lot of stitches or pegs fall out. Is this generally user error due to going to fast or having the wrong tension when cranking on it? I haven't decided which type I want to get, although getting through a bunch of tube making in a shorter amount of time has its appeal.

Thank you for any help you can provide!

Tina Hill

Saturday 27th of November 2021

I have a lot of #4weight yarns and I need to know what gauge and which looms to make xl sweatersfor adults on.

Tina Hill

Saturday 27th of November 2021

@ GoodKnitkisses first sweater I want to make is the Yarnspirations Color Dipped top in Patons Metallic #4 weight yarn. It is a needle pattern that I want to convert to the loom . Suggested needle sizes are (knitting needles)5mm and 4mm . I own the kb 18 in all in one adjustable loom(pretty sure it is 3/8 gauge and I also own the kb limited edition 20in adjustable loom that is 5/16 gauge…..I plan on doing swatches but would I be casting on the same number of pegs as I would stitches onto a needle OR would I measure width of swatch, figure out how many stitches per inch, and (for explanation purposes if 5 stitches an inch and I need 25 inch width on sweater panel then I cast onto 125 pegs?)cast on number of pegs that provides the width I need for sweater body?

Also I am right handed and I like to work from right to left do I cast onto round looms clockwise or counterclockwise and on straight looms do I cast on from right to left or left to right?

Thank You for all the videos and everything, your help is invaluable to me and I am certain many others as well.

Beverly Ann Hawker

Wednesday 13th of October 2021

I have a lot of Dk weight yarn and worsted and would like to know what type of looms would be best to get for afgans

GoodKnit Kisses

Wednesday 20th of October 2021

For DK weight, a small gauge loom (3/8") should work very well. If you plan to make a full size afghan in one piece you need enough pegs to get the width you want. If you don't mind sewing seams you can make squares on just about any size loom and seam them. Or there's always the Ten Stitch Blanket that spirals out from the center square. Hope this helps!
